API Oilwell fishing tools and milling tools
Series 150 Overshot
LANDRILL 150 series releasing and circulating overshot is an external fishing tool for engage, pack off and retrieve tubular fish, especially for fishing drill collar and drill pipe. The grapple of the overshot can be designed for different sizes of fish, so one overshot can be dressed with different size of grapple components for fishing different sizes of fish.
Construction
Series 150 Overshot consists of three outside parts: Top Sub, Bowl, and Standard Guide. The Basic Overshot may be dressed with either of two sets of internal parts, if the fish diameter is near the maximum catch of the Overshot, a Spiral Grapple, Spiral Grapple Control, and Type “A” Packer are used. If the fish diameter is considerably below maximum catch size (½” or more) a Basket Grapple and a Mill Control Packer are used.
When ordering please specify:
● The model of the overshot
● The hole, casing size or O.D. of overshot
● Top connection
● O.D of the fish
FS = Full Strength
SH = Slim Hole
Series 10&20 Overshot
Series 10 Sucker Rod Overshot is a professional fishing tool, designed for engaging and retrieving sucker rods, couplings, and other tubular from inside tubing strings.
Description
Series 10 Sucker Rod Overshot consists of a Top Sub, Bowl, Grapple, and a Guide. According to the size of the fish, there are two types of grapples available: Basket Grapple or Spiral Grapple. LANDRILL Series 10 is a simply tool to use, no matter engaging or releasing operation, in fact just need to rotate the fishing string on right hand.
Engaging a Fish When overshot nears the top of the fish, slowly rotate to the right as the overshot is lowered over the fish. After the fish is engaged, allow right-hand torque to release from the fishing string. Then raise the fish by pulling upward on the fishing string.
Releasing a Fish Bump down or drop the weight of the fishing string against the Overshot to break the hold of the grapple within the bowl. Elevate the fishing string while slowly rotating it to the right until the Overshot has cleared the fish.
Releasing And Reversing Overshot
Type DLT-T Releasable Reversing Overshot, a new type of fishing tool, has advantages owned by various overshot, box tap and the like. Its distinguishing features are as follows: to unscrew and recover the stuck fish; To release the fish down hole if necessary; to circulate the washing fluid as one of the accessories for reversing tools. It is widely used in well servicing.
Description
Structure and Application
Consisting of top sub, spring, bowl, retaining seat, slip, control key, seal ring, seal seat, guide and so on. The upper end of top sub is connected with other drill tools. The lower end of top sub is connected with bowl equipped with spring in the interior. There are three control keys uniformly distributed in the inner wall of the upper end of bowl. the control keys are used to control the position of retaining seat. Three keys are inserted separately in three grooves in the tapered interior section of lower end in bowl where three keys are used to transmit torque. The tapered interior section produces a pinch force against the slip to trigger the fishing operation. The inclined angle among three control keys play an important role in retaining conformance of the slip with the bowl to ensure that the tools can be released easily from the fish.
The retaining seat is installed at the upper end of the external bowl where the three keys are placed. The retaining seat not only can slide axially, but also rotates round the axial line moving with the slip which is installed in the internal circular recess.
Series 70 Short Catch Overshot
Series 70 Short Catch Overshot is an external fishing tool designed to retrieve tubular fish when the top of the fish is too short to be engaged with other overshot. The Grapple Control is positioned above the Basket Grapple rather than below it to allow the Basket Grapple to occupy the lowest position in the Bowl. This enables the overshot to firmly engage and retrieve a very short fish.
Description
Construction
Series 70 Short Catch Overshot assembly consists of a Top Sub, Bowl, Basket Grapple Control, and a Basket Grapple. Although the Series 70 Overshot has no Guide, the components function in the same manner as the standard Series 150 Releasing and Circulating Overshot.
Catching the Fish
Attach the Overshot to the bottom end of the fishing string and run it into the hole. Series 70 Overshot assembly is rotated to the right and lowered as the fish enters the expandable grapple. With the fish in the grapple, stop right-hand rotation and exert an upward pull to fully capture the fish.
Releasing the Fish
A sharp downward force (bump) is applied to the Overshot to break the hold of the grapple within the bowl. The Overshot is then rotated to the right while it is slowly elevated to release the grapple from the fish.
When ordering please specify:
The model of the overshot.
The hole, casing size or O.D. of overshot and top connection
O.D of the fish
Note:
We can design Overshot according to customers' request
Lifting-lowering And Releasing Overshot
Lifting-Lower and releasing overshot is a fish tool in the casing which fishes fractured tubing and drill string. If fish drill string is stuck heavily and hard to complete fishing work, while need to release fish, may get back the tool by bumping drill string down and lift directly.
The product is excellent for fishing operations as it does not require rotation. Fishes can be caught or released through simple lifting or lowering of the tool.
Description
Lifting-Lower and Releasing Overshot is composes of top sub, bowl, guide pin, guide sleeve, joint sleeve, plug, roller pin, slip, guide, as shown in the figure. The box thread of top sub is connected with drill stem and the pin thread is connected with the bowl, The bottom of bowl is connected to the guide. An inner cone in the bowl matches the slip. Box thread of guide sleeve is connected with joint sleeve, track trenches are milled on another outer surface: three long trenches and three short trenches act as guiding and reversing. When guide pin locates in long trench is in the condition of fish. When guide pin locates in short trench is in the condition of release. Joint sleeve is two petals formation. It makes slip and guide sleeve connection and by roller pin act as bearing. The inner surface of slip has fish thread, guide is on the bottom and can make fish introduce into slip successfully.
Working Principle
The tool complete fishing and releasing fish through long, short track trenches. When the tool reaches the top of fish, it is lowered and is in contact with the fish. Through lifting and lowering, guide pin is in the position of long or short trench, slip is in the situation of fishing or releasing, in the condition of non-rotating complete fishing and releasing fish.
Releasing Spear
Releasing Spear provide a more effective waysto engage and retrieve an internal fish from the well. It is ruggedly to withstand severe jarring and pulling strains. It engages the fish over a large area without damaging of the fish. The simple design prevent small parts being lost or damaged in the hole during operation. It may be used with other equipment such as pack-off assemblies and internal cutters. If the fish cannot be pulled, the spear can be easily be released and disengaged.
Description
Construction
The Releasing Spear consists of a mandrel, grapple, releasing ring, and a bull nose nut. The mandrel is made of specially heat treated high strength alloy steel; and may be ordered either as a flush type to enter completely into a fish or as a shoulder type to provide a positive landing position on top of the fish. Size and type of the upper box connection can be customized provide according to customer’s exact specification.
When ordering please specify:
● The model of the releasing spear.
● Top connection
● The exact size and weight of the fish
● Flush or shoulder type mandre
Releasing Sub
The reversing subs is also called reversing spear which is a special tool for reversing stuck drill stem above stuck point in drilling and workover operation. In treatment of stuck drill stem, it can work as a fishing pin tap in reversing operation. When fish is stuck or cannot be reversed in fishing or reversing operation, the fish can be reversed from reversing sub and the fishing drill tool is tripped out.
Description
Specifications - Reversing Sub
Table 1. DKJ Reversing Sub (thread connection LH, catch thread RH)
Specifications - Reversing Sub
Table 2. DKJ Reversing Sub (thread connection RH, catch thread LH)
Specifications - Reversing Sub
Table 3. DKJ Reversing Sub (thread connection RH, catch thread RH)
Cable Fishing Hook& Sliding Block Spear
The Cable Fishing Hook is generally used to catch electric pump cables or wirelines and broken pieces of the bent sucker rods in casing.
The Sliding Block Spear is an internal fishing tool used for fishing fallen objects that are generally used in oil perforation process, such as drill pipe, tubing, wash pipe, liner, packer, water distributor, etc. It can also be used for the reversing of stuck fallen objects and it can be used in conjunction with other tools such as jar and back-off tool.
Description
Specifications - Table Fishhook

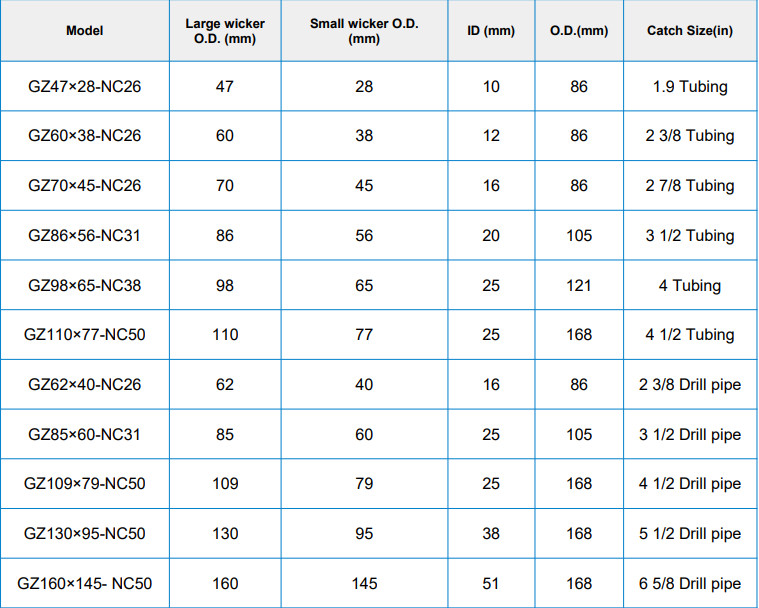

Taper Tap
The Taper Tap is a special internal catch fishing tool that engages with dropped tubular objects such as drill pipes and tubes by tapping threads on the object surfaces. It is a highly effective tool in the fishing of dropped tubular objects with couplings especially when the tapered threads engaged with the fish couplings. The taper tap can be used for different fishing operations when equipped with left hand threaded or right hand threaded drill pipes and tools. The taper tap is made from high strength alloy steel, heat treated for maximum strength and ruggedness. The cutting threads are hardened (wicked) with cutting grooves to ensure proper tapping of threads on the fishes.
Die Collar
The die collar, also known as skirted taper tap, is a special external fishing tool that engages with the dropped tubular objects such as drill pipes and tubing, by tapping on the external wall of the objects. It can be used in fishing cylindrical objects without inner bore or stuck inner bore.
Description
The die collar is a long cylindrical integral structure composed of a Sub, a Tap body with cutter threads in the cone shaped interior. The die collar is made of high strength alloy with cutting grooves in the fishing threads.
Reverse Circulation Junk Basket
Reverse Circulation Junk Basket (RCJB) is designed to remove all types of small junk objects from the well hole. The tool’s main feature is that it eliminates the possibility of pulling a wet string during fishing operation with its reverse drainage design. The RCJB can also be used as a fish magnet when fitted with a magnet insert, while maintaining its reverse fluid circulation feature.
Description
Operation
RCJB is normally attached at the bottom of the fishing string, lowered to a point several feet from the bottom of the well. Begin circulation of the junk basket to wash the hole. Stop circulation and drop the steel ball. (When the steel ball is dropped into the valve seat, reverse fluid circulation is activated. The fluid travels outward and downward through the inner passage of the barrel and out through the vents in the lower end. The fluid is then deflected to the center of the tool and up through the return holes in the upper end of the barrel. The reverse fluid circulation carries the junk into the barrel above the junk catcher. Restart the circulation; slowly rotate the junk basket while lowering the tool until a 10-inch core has been cut. Stop rotation and circulation and pull the tool and junk from the hole.
