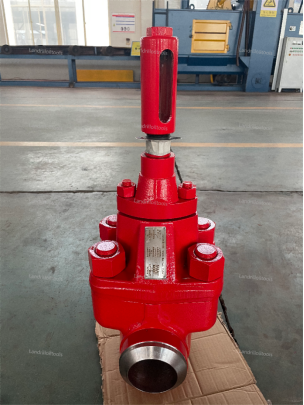

What is The Role of Mud Gate Valves?

Mud gate valves are primarily used in oil drilling, cementing, and workover operations to control the flow of high-pressure drilling mud or other wellbore fluids. Their key functions include:

1.Flow Shutoff

Quickly isolate mud circulation lines during emergencies or maintenance to prevent blowouts or leaks.

Example: “Activate the mud valve immediately if well kick symptoms are detected.”

2.Pressure Containment

Withstand extreme drilling fluid pressures (typically 15,000+ PSI) to maintain well control integrity.

3.Abrasion/Corrosion Resistance

Valve bodies and seals (e.g., tungsten carbide) resist erosion from sand-laden or corrosive mud.

4.BOP System Integration

Serve as auxiliary components to blowout preventers (BOPs) for enhanced wellhead safety.

5.Mud Gate Valve Technical Selection Parameters

1. Key Specifications

Bore Size:
Standard range: 2″ to 12″ (Common sizes: 4″/6″/8″)

Pressure Rating:
Working pressure: 5,000-15,000 PSI (Higher ratings available)
Compliant with: API 6A/API 16C/ASME B16.34 standards

2. Connection Types

Flanged:
ASME B16.5 (RF/RTJ)
API 6A (6B/6BX)

Clamped:
API 6A (6B/6BX)

Threaded:
API 7-1 (Premium Thread)
NPT (American Standard Pipe Thread)

3. Material Specifications

Body Material:
Carbon Steel (ASTM A216 WCB)
Stainless Steel (ASTM A351 CF8M)
Duplex Steel (ASTM A995 4A/5A)

Sealing Systems:
Metal-to-metal (Tungsten Carbide/Stellite)
Resilient Seals (NBR/FKM)

4. Special Service Requirements

Sour Service (H₂S/CO₂):
NACE MR0175/ISO 15156 compliant

Temperature Extremes:
Low temp: -50°C (-58°F)
High temp: 232°C (450°F) or custom

Abrasive Media Handling:
Hard-faced seats/gates available

5. Selection Guidelines:Please provide the following for precise valve selection:

Well Type: [Land/Offshore/Shale/Deepwater]

Maximum Pressure: [_____ PSI]

Fluid Characteristics: [Sand content, Cl⁻ concentration, H₂S levels]

Environmental Factors: [Temperature, corrosivity, explosion-proof requirements]
